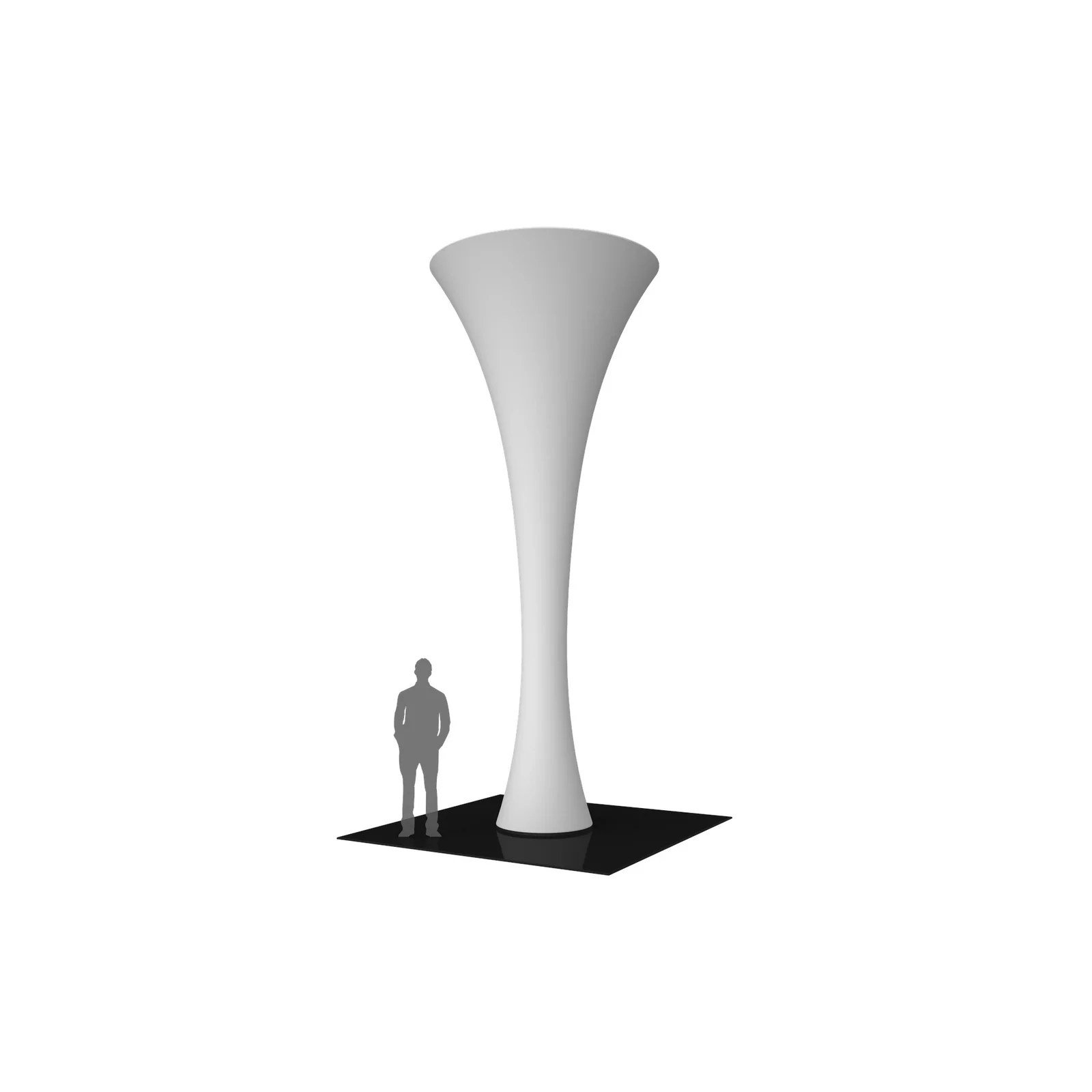

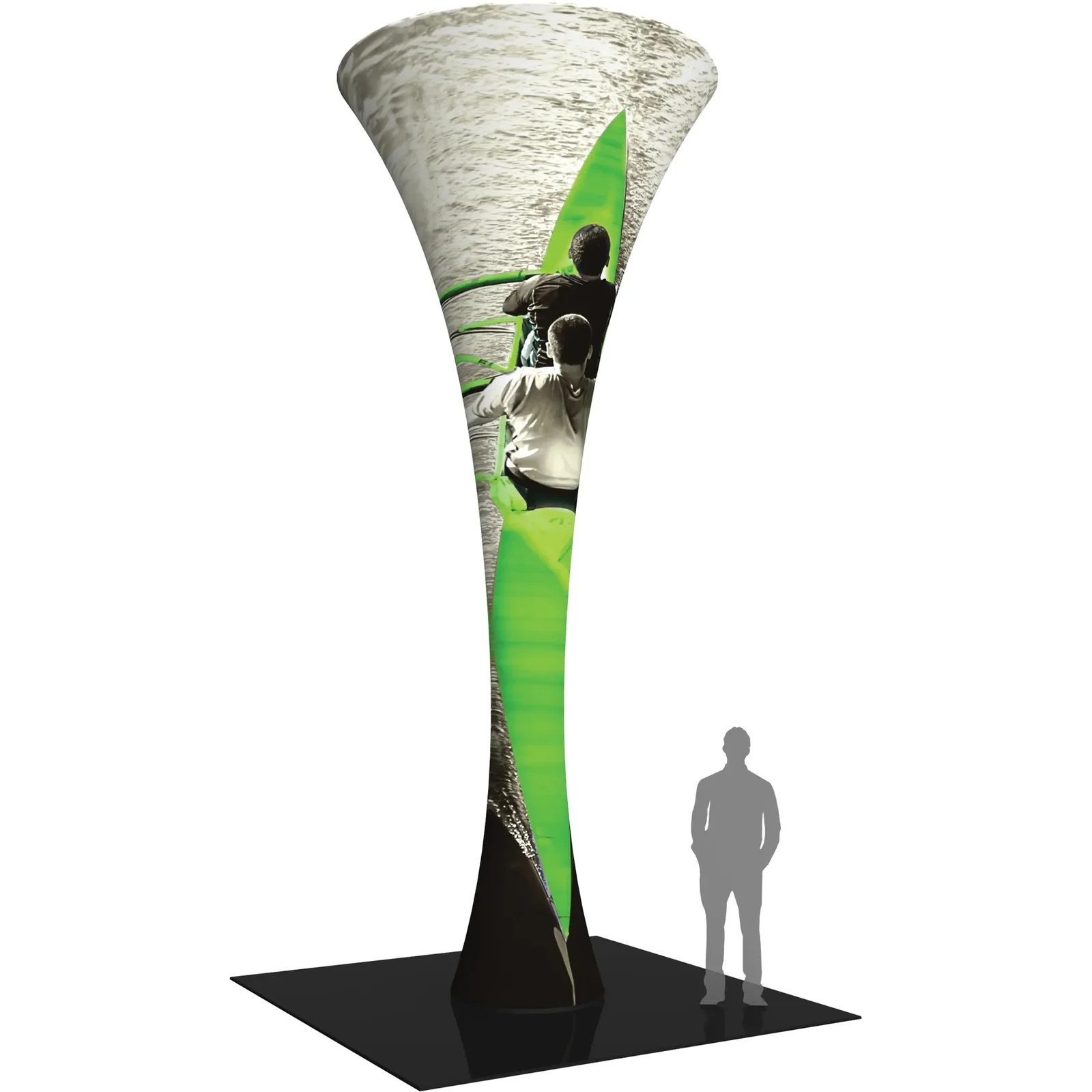

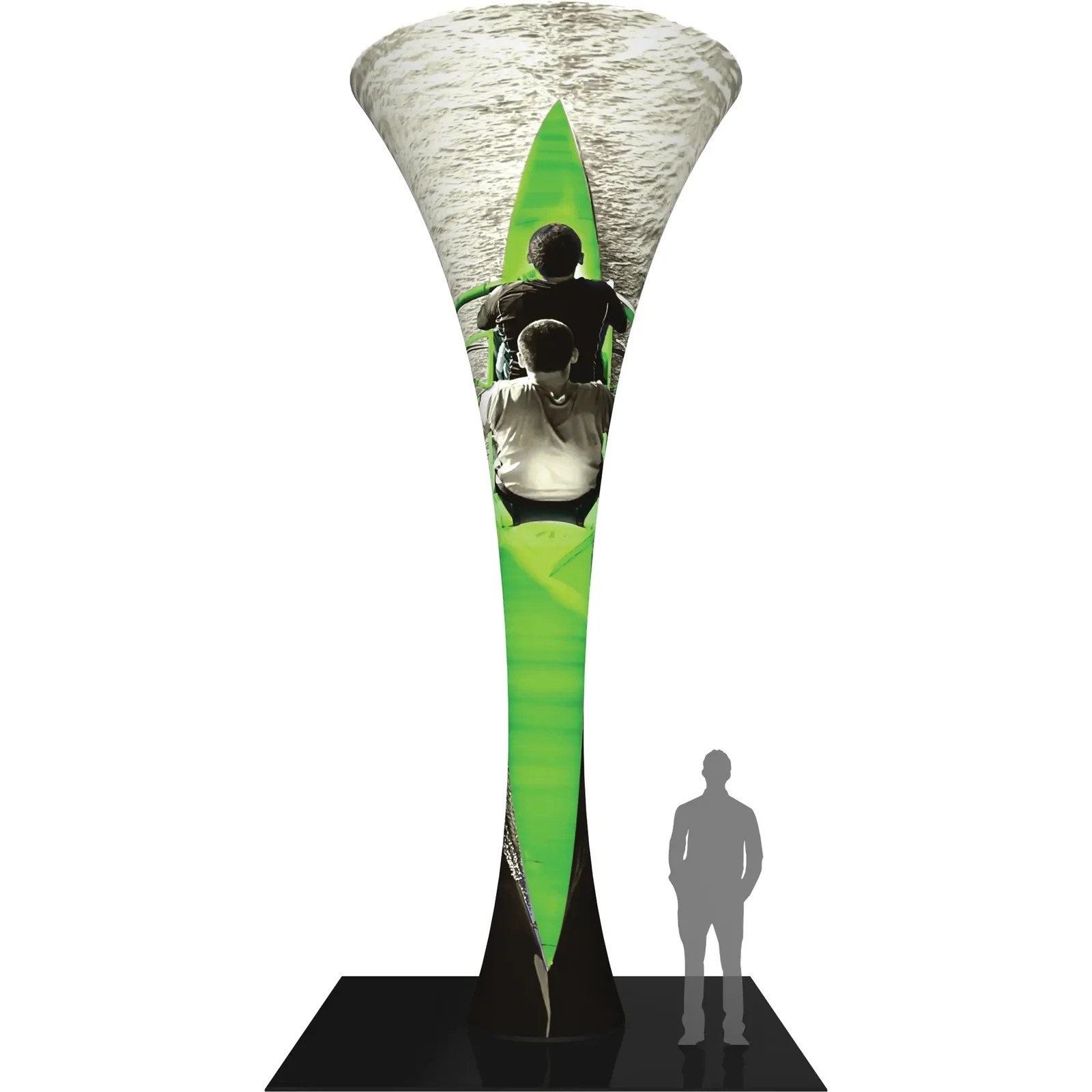

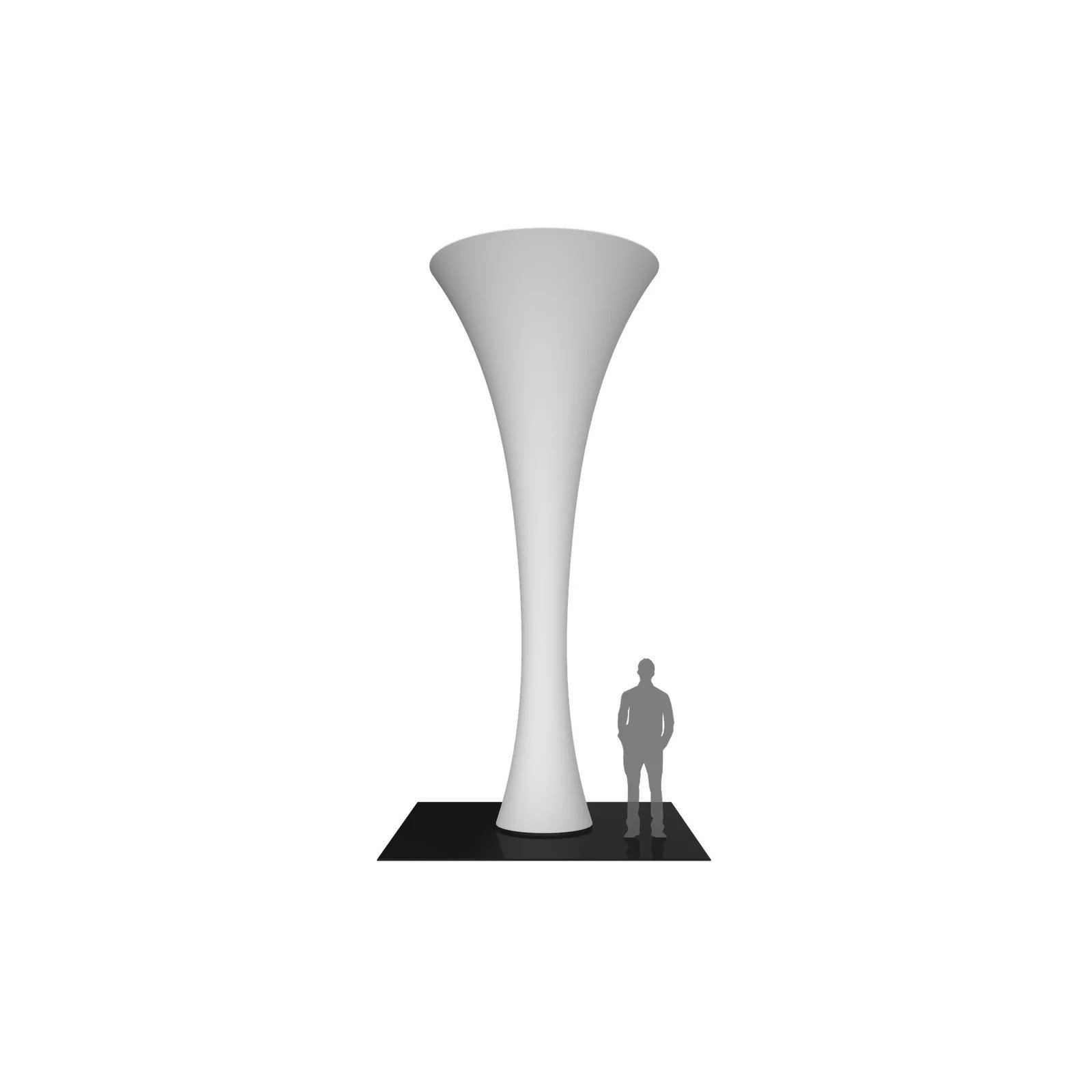

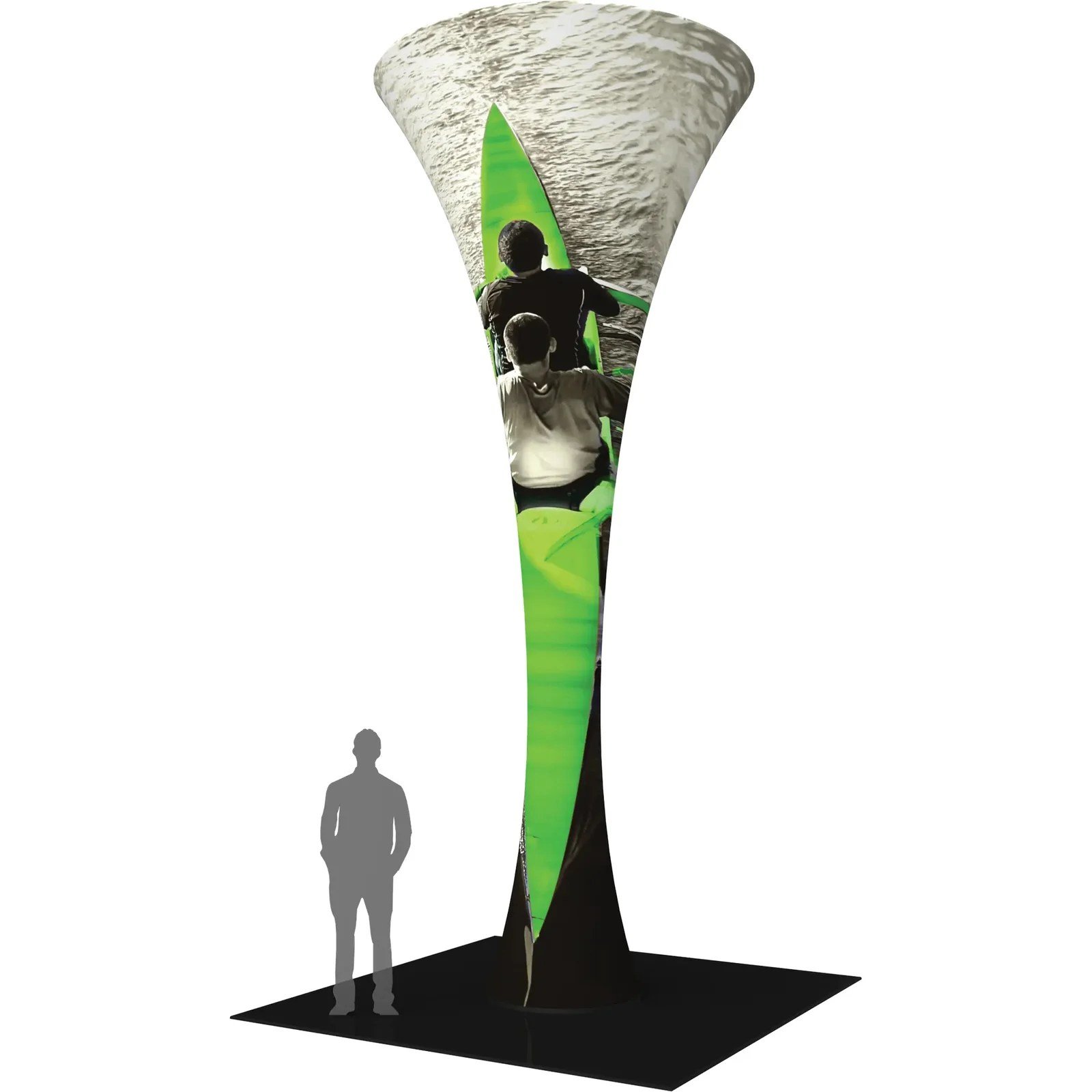

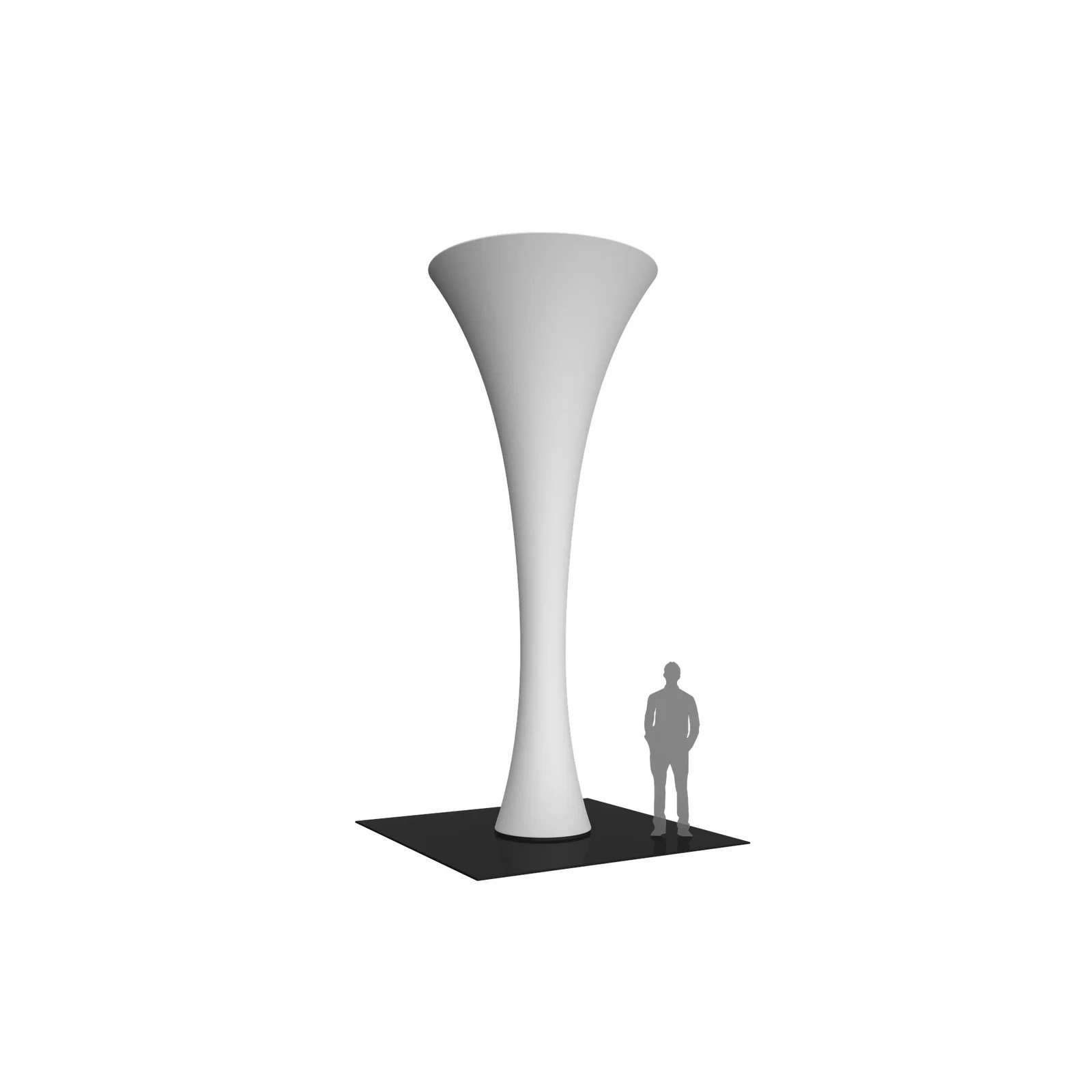

The 20ft Formulate® Fabric Funnel 01 can transform any environment through form, fabric and lighting. Formulate Funnel 01 measures 20ft tall, and features a heavy-duty wooden base and silver powder coated truss interior to create a dynamic, towering structure that commands attention. Fabric graphics feature a zipper at the top and a silicone edge at the bottom for easy assembly. Accent LED light kits are not included, but can be purchased a la carte to add a glow within the funnel. Funnel 01 packs down into two wheeled OCH2 cases for easy storage and transport.
- State-of-the-art 30mm curved aluminum tube frame with expanding spigots
– Easy to store and ship
– Quick to set up
– Kit includes: one frame, one dye-sublimated zipper pillowcase graphic, and two wheeled molded OCH2 storage cases (base packs separately)
– 42″ diameter at base
| Graphic Width | 96.87″ |
|---|---|
| Graphic Height | 246.92″ |
| Assembled Dimensions | 98.5″W x 237″H x 98.5″D |
| Hardware Only Weight | 140 lbs |
| Graphics Only Weight | 32 lbs |
| Approximate Total Display Weight | 172 lbs |
| Shipping Dimensions | Ships in:2 x OCH2 (52″L x 29″H x 15″D)+ 1 SKID |
| Approximate Shipping Weight | 232 lbs |
Spec Sheets
IS_FUN-01.PDF
Graphic Templates
GT_FMLT-FUN-01.PDF
CAD Files
CAD_FUN-01.ZIP
| Product Type | Hanging Sign, Tension Fabric Display |
|---|---|
| Material | Aluminum, Fabric |
| Filter Size | 2ft |
| Filter Diameter | 42in |
